Home > PRODUCT > Dual Solenoid Valve > Air Quick Valve

급속배기 밸브 (1/2, 3/4, 1, 1¼,1½ 인치)

The Air Quick Valve has an extended life span and high reliability. The Air Quick Valve is light and compact, so it can be installed in a small and limited space. It has compact structure and it does not have its own energy, so it does not make any problem, which needs to have A/S.

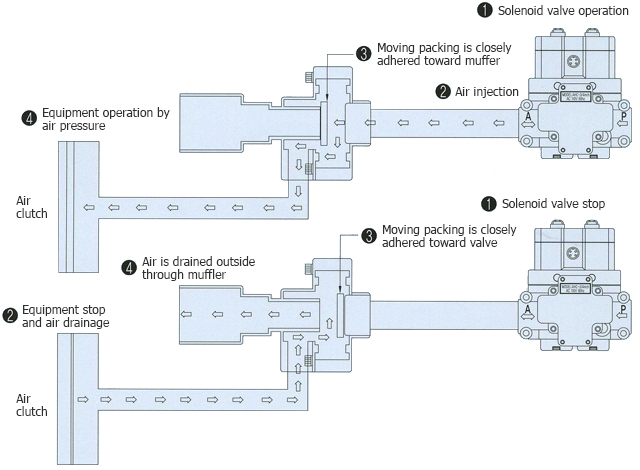

If airflow supplement to P part is removed, compressed air in the out part is gotten out to the EXH of the silencer, and it will promptly stop the machine. Inputted air is discharged to between the clutch and dual valve, and it stops the machine at the accurate position. The Air Quick Valve helps the break action to be smoothly, and it prolongs the life span of the machine. AHC’s Air Quick Valve is needed for the industrial machines which need the quick and accurate control










1)     It has light weights with the compact design makes available the installation on the small space.

2)     Vary sizes are enable to choice the valve depends on the displacement.

3)     Applying the Check packing structure design

4)     The faster exhausting helps the rapid control of the machine and it reduce the forces on the machines helps the longer life span of the machine.
